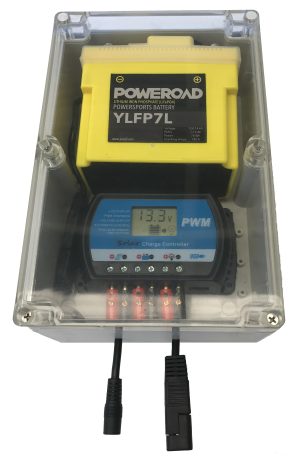

Waterproof Box, Solar Controller, High Capacity Battery
Battery Specifications
| PRODUCT | MODEL | C.C.A | POWER | CHARGING CURRENT |
POLARITY | DIMENSIONS (MM) |
REPLACEMENT |
|---|---|---|---|---|---|---|---|
 |
YLFP-7L | 180 | 12.8V 76.8Wh |
STD | – + | 114*70*105 | YB12AL-A2, YB12AL-A, YB10L-B2, YB7L-B, YB9L-A2, YB10L-A2,YB10L-B, YTX5L, YTZ7S, YTX7L, YB7C-A, 12N7-3B, 12N7D-3B, 12N9-3A-1, 12N9-3B, 12N10-3A, 12N10-3A-1, 12N10-3A-2, 12N11-3A-1 |
MODEL \\ YLFP-7L
C.C.A \\ 180
POWER \\ 12.8V / 76.8Wh
CHARGING CURRENT \\ STD
POLARITY \\ – +
DIMENSIONS (MM) \\ 114*70*105
REPLACEMENT \\ YB12AL-A2, YB12AL-A, YB10L-B2, YB7L-B, YB9L-A2, YB10L-A2,YB10L-B, YTX5L, YTZ7S, YTX7L, YB7C-A, 12N7-3B, 12N7D-3B, 12N9-3A-1, 12N9-3B, 12N10-3A, 12N10-3A-1, 12N10-3A-2, 12N11-3A-1
C.C.A \\ 180
POWER \\ 12.8V / 76.8Wh
CHARGING CURRENT \\ STD
POLARITY \\ – +
DIMENSIONS (MM) \\ 114*70*105
REPLACEMENT \\ YB12AL-A2, YB12AL-A, YB10L-B2, YB7L-B, YB9L-A2, YB10L-A2,YB10L-B, YTX5L, YTZ7S, YTX7L, YB7C-A, 12N7-3B, 12N7D-3B, 12N9-3A-1, 12N9-3B, 12N10-3A, 12N10-3A-1, 12N10-3A-2, 12N11-3A-1
Controller Specifications
| MODEL | RTD1210 | RTD1220 | RTD1230 |
|---|---|---|---|
| Rate Voltage | 12V/24V Auto | ||
| Charge Current | 10A | 20A | 30A |
| Discharge Current | 10A | 20A | 30A |
| Max Solar Voltage | < 50V | ||
| Low Voltage Disconnect | 10.7/21.4V | ||
| Low Voltage Reconnect | 12.6/25.2V | ||
| Float Charge Voltage | 13.7/27.4V | ||
| Standby Loss Current | < 15mA | ||
| Charging Mode | PWM (Pulse Width Modulation) | ||
| Operating Temperature | -20℃C to +60℃C | ||
| Size | 128*68*33 mm | ||
| USB Output | 1 | ||
