PRODUCT |
MODEL |
C.C.A |
POWER |
CHARGING
CURRENT |
POLARITY |
DIMENSIONS
(MM) |
REPLACEMENT |
|

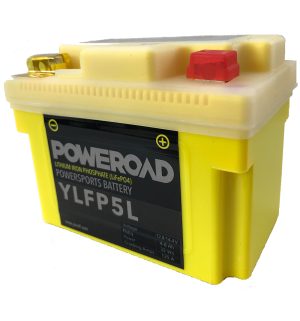

YLFP-5L |
125 |
12.8V
32Wh |
STD |
– + |
114*70*86 |
YB4L-B, YB4L-A, YTX4L-BS, YTX5L-BS |
|

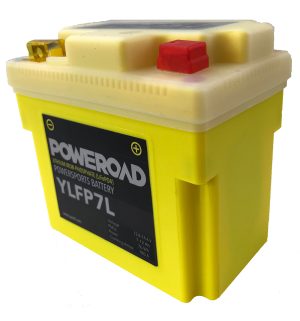

YLFP-7L |
180 |
12.8V
76.8Wh |
STD |
– + |
114*70*105 |
YB12AL-A2, YB12AL-A, YB10L-B2, YB7L-B,
YB9L-A2, YB10L-A2,YB10L-B, YTX5L, YTZ7S, YTX7L, YB7C-A, 12N7-3B, 12N7D-3B,
12N9-3A-1, 12N9-3B, 12N10-3A, 12N10-3A-1, 12N10-3A-2, 12N11-3A-1 |
|

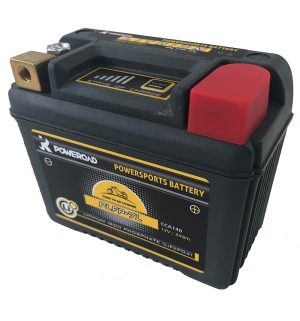

PLFP-7L |
140 |
12.8V
25Wh |
STD |
– + |
107*56*85 |
YTZ52, YTZ7S, YTX7L-BS, YB65L-S, YB4L-A, YB7L-B, YTX4L-BS, YB4L-B, 12N4-3B,
YTX5L-BS, YB5L-B, 12N5-3B, 12N55-3B,
12N7-3B, 12N7A-3A, 12N7CZ-3D, 12N7D-3B |
|
PLFE-C22S |
140 |
12.8V
24Wh |
STD |
– + |
90*50*90 |
Samsung C22S |
|

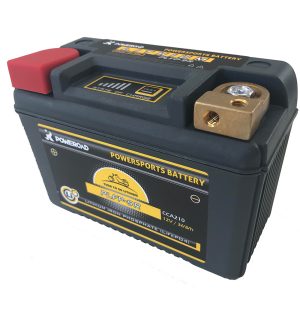

PLFP-9R |
210 |
12.8V
38Wh |
STD |
+ – |
134*65*92 |
YTX7A-BS, YTX9-BS, YTR9-BS, YB9A-A,
YB9-B, 12N9-4B-1 |
|

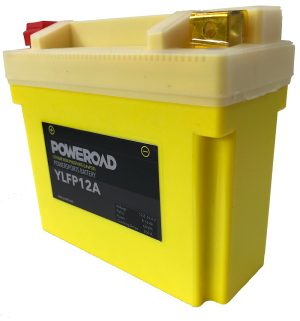

YLFP-12A |
250 |
12.8V
64Wh |
STD |
+ – |
148*65*130 |
YT12B, YTX12-BS, YTX14B, YB12B-B2 |
|

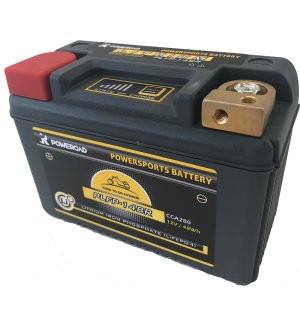

PLFP-14BR |
280 |
12.8V
48Wh |
STD |
+ – |
134*65*92 |
YT7B-BS, YT9B-BS, YTZ10S, YT12B-BS,
YT14B-BS, YTX14AH-BS, YB10A-A2, YB12A-A, YB12A-B, YB12B-B2, YB12C-A, YB14-A2,
YB14-B2, YB14A-A1, YB14A-A2, 12B12A-4A1 |
|

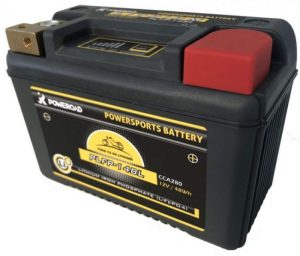

PLFP-14BL |
280 |
12.8V
48Wh |
STD |
– + |
134*65*92 |
YTX14AHL-BS, YB10L-A2, YB10L-B, YB10-B2, YB10L-BP, YB12AL-A, YB12AL-A2, YB14L-A1, YB14L-A2, YB14L-B2, YB16AL-A2, YB14L-A2, YB14L-B2, 12N10-3A-2, 12N11-3A-1, 12N14-3A |
|

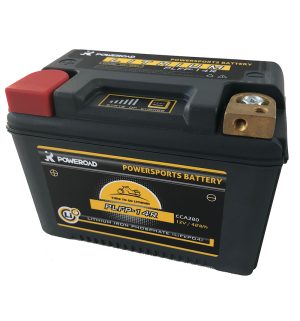

PLFP-14R |
280 |
12.8V
48Wh |
STD |
+ – |
148*86*105 |
YTZ12S, YTZ14S, YTX12-BS, YTX12A-BS,
YTX14-BS, YTX14H-BS, KMX14-BS |
|

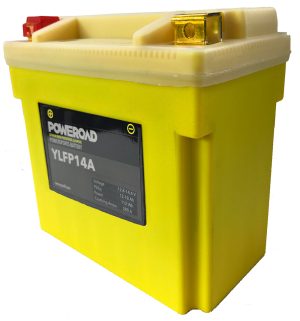

YLFP-14A |
250 |
12.8V
64Wh |
STD |
+ – |
138*88*145 |
YTX14AH-BS, YTX14H-BS, YTX14-BS,
KMX14-BS, YB10A-A2, YB14-A2, YB14A-A1,
YB14A-A2, YB14-B2 |
|

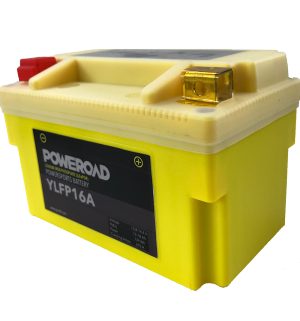

YLFP-16A |
270 |
12.8V
133.2Wh |
STD |
+ – |
148*87*94 |
YT12A-BS, YTZ-10S, YTZ-12S, YTZ-14S |
|
YLFP-20A |
375 |
12.8V
96Wh |
STD |
+ – |
148*87*145 |
YTX16-BS, YTX20-BS, YTX14H-BS,
YTX20CH-BS, YB16-B-CX, YTX20H, YB16B-A1, GYZ20L, GYZ20HL, YB16B-A, YB16-B,
HYB16-A, YB16C-B, YB18-A, Y50-N18A-A |
|
YLFP-20L |
375 |
12.8V
96Wh |
STD |
– + |
148*87*145 |
YTX14L-BS, YTX20L-BS, YTX20HL-BS, YTX20HL-BS-PW, YB16L-B, YB-16HL-A-CX,
Y50-N18L-A-CX, Y50-N18L-A, Y5-N18L-A3,
SY50-N18L-AJ |
|
YLFP-27L |
500 |
12.8V
128Wh |
STD |
– + |
175*87*155 |
GYZ20L, GYZ20HL, YTX24HL, YB16HL, YB18L-A, YB16CL-B, SYB16L-B, Y50-N18L-A-CX |
|

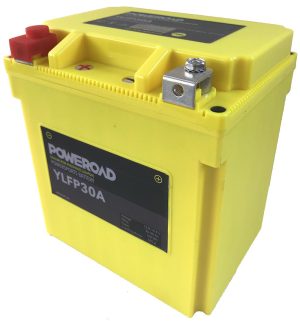

YLFP-30A |
625 |
12.8V
160Wh |
STD |
+ – |
166*124*175 |
Y60-N24-A, 12N24-3A, 12N24-3, 53030 |
|

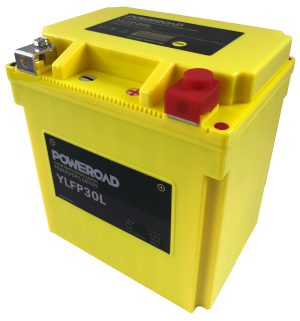

YLFP-30L |
625 |
12.8V
160Wh |
STD |
– + |
166*124*175 |
YIX30L, YIX30L-BS, Y60-N24AL-A,
Y60-N24AL-B, YB30L-B, YB30CL-B, GYZ32HL, 12N24-3 |
|

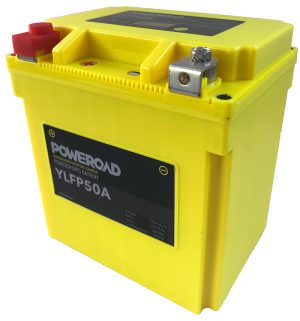

YLFP-50A |
1250 |
12.8V
320Wh |
STD |
+ – |
166*124*175 |
Special Application. |
|

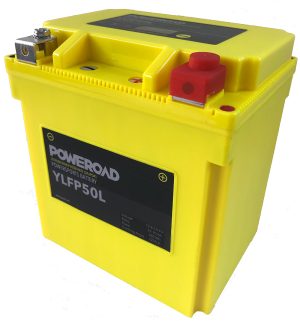

YLFP-50L |
1250 |
12.8V
320Wh |
STD |
– + |
166*124*175 |
YIX30L, YIX30L-BS, YB30L-B, YB30CL-B, GYZ32HL |
